Indirect Waffles: Shellcode Loader to Evade EDRs

While preparing for CRTO 2 and learning from Maldev Academy, I wanted to put everything I had learned into practice. That’s when I created Indirect Waffles, a custom shellcode loader designed for EDR evasion and enhanced by many of the advanced techniques I’ve been studying.

Demo

Key Features

• Enumeration: Uses NtQuerySystemInformation to enumerate processes for PPID spoofing and NtOpenProcess syscall to obtain process handles.
• Custom Dynamic HTTP/s Payload Staging
  • Check it out on my GitHub.
• Shellcode Decryption: RC4 with runtime key brute-forcing.
• Process Creation with NtCreateUserProcess and the following enhancements:
  • Suspended process creation for APC Injection.
  • Parent Process ID (PPID) spoofing.
  • Block DLL injection policy, preventing third-party DLLs (non-Microsoft signed) from being injected, mitigating some EDR hooking techniques.
• Injection: Remote Mapped Injection via syscalls with RX (Read Execute) permissions for improved evasion from memory scanners.
• Execution: Early Bird APC Injection using syscalls to queue the payload for execution before the target thread resumes execution.
• Resumes process via NtResumeThread syscall.
• Extra Enhancements:
  • Custom string literal obfuscation: Works on both normal and wide strings.
    •

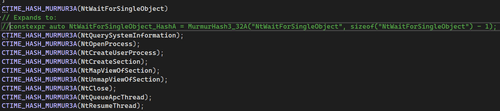

  • Compile-time IAT API hashing using MurmurHash to evade static API detection techniques.
  • HellHalls’ Indirect Syscall implementation with compile-time hashing via MurmurHash.
    •
• Anti-Debugging:
  • Checks the PEB flag for the IsDebugged flag to detect the presence of a debugger.
  • Anti-debug loop (30 seconds total):
    • 3-second sleep intervals using NtWaitForSingleObject.
    • API hammering to make the sleep appear more benign.
  • Uses QueryPerformanceCounter to measure total loop time; if it exceeds 35 seconds, it is likely being debugged.
• Spoofed Binary Metadata:
  • .DLL: Spoofed as Notepad++’s libcurls.dll.
  • .EXE: Spoofed as Notepad++’s gup.exe.

Learn how to spoof a binary’s metadata here
